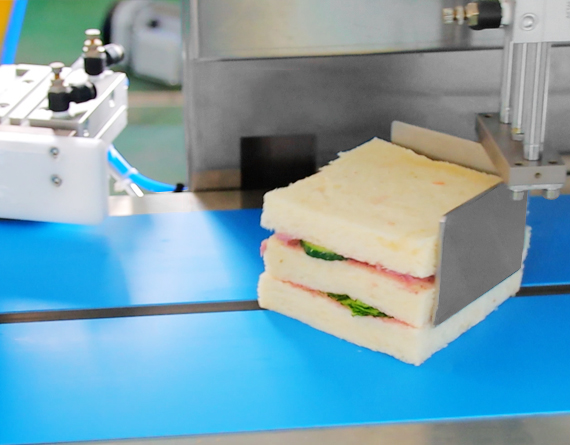

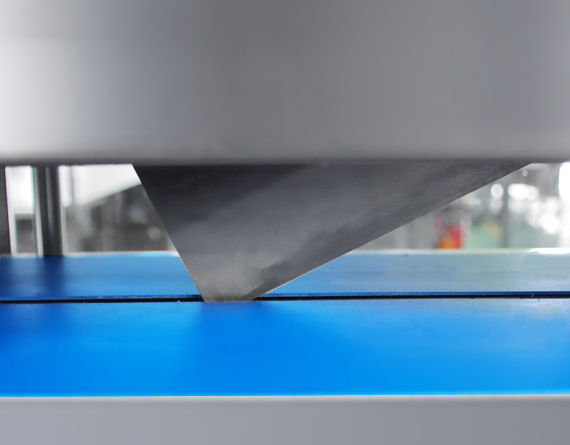

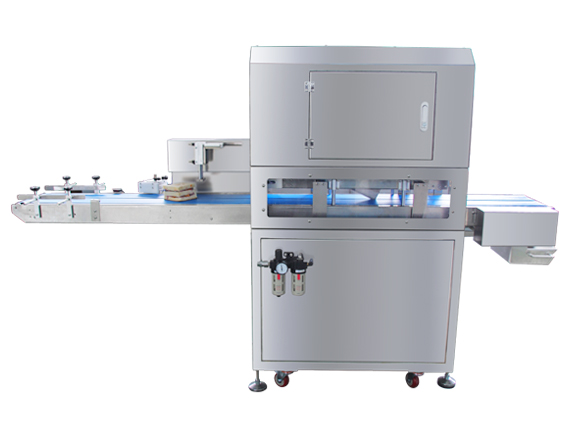

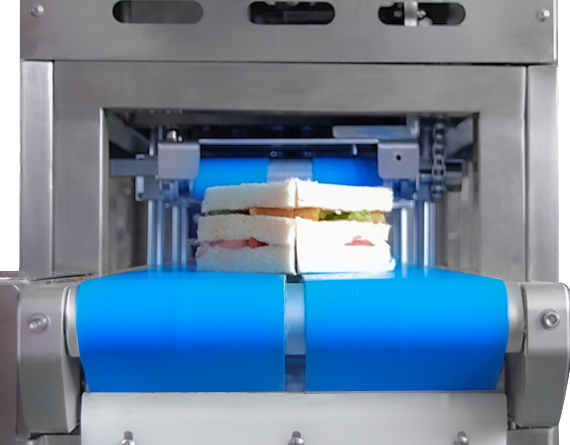

Automatic Ultrasonic Sandwich Cutter With Conveyor
Model · MC-SC20
Conveyor-based sandwich cutting with independently adjustable transport, cutting speed and cutting height.
- Frequency
- 20 kHz
- Power
- 2000 W
- Knife material
- Titanium
Designed for your process.
Conveyor-based sandwich cutting with independently adjustable transport, cutting speed and cutting height.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Precision food portioning
Conceptual food-cutting environment for discussing texture, portion size and handling.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Frequency | 20 kHz |
|---|---|
| Power | 2000 W |
| Knife material | Titanium |
| Knife size | 200 mm; customizable |
| Capacity | 60 cuts/min; customizable |
| Touchscreen | 7 inch |
| Dimensions | 2230 × 450 × 1500 mm |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
Useful answers.
What is the MC-SC20 used for?+
Conveyor-based sandwich cutting with independently adjustable transport, cutting speed and cutting height.
What should I provide for model selection?+
Share your material, part drawing, joint or cutting geometry, target output and installation constraints. For replacement components, include the existing generator, frequency and connection dimensions.
Can I confirm a configuration before ordering?+
Yes. Use the inquiry form to describe your application and the required model. Final tooling, electrical supply, interfaces and performance targets should be agreed for your project.
