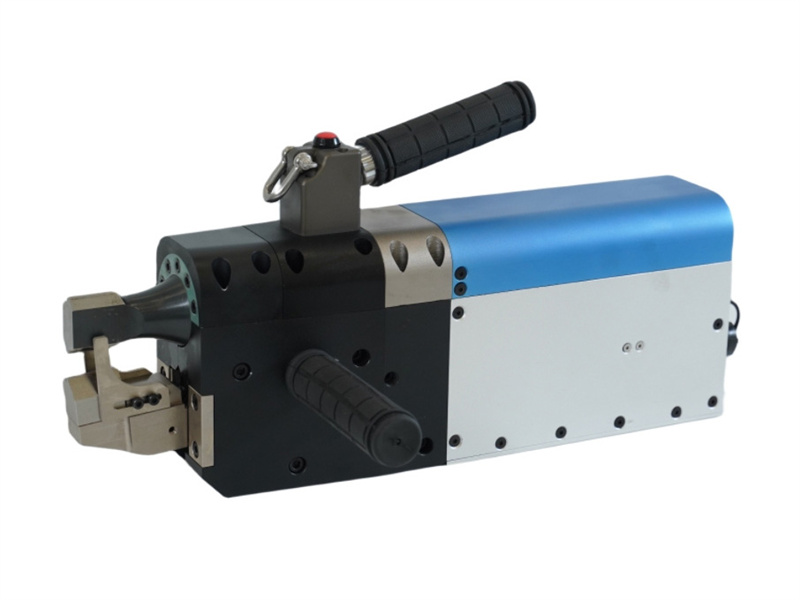

MC-F30Z Portable Ultrasonic Copper Tube Sealing Machine
Model · MC-F30Z

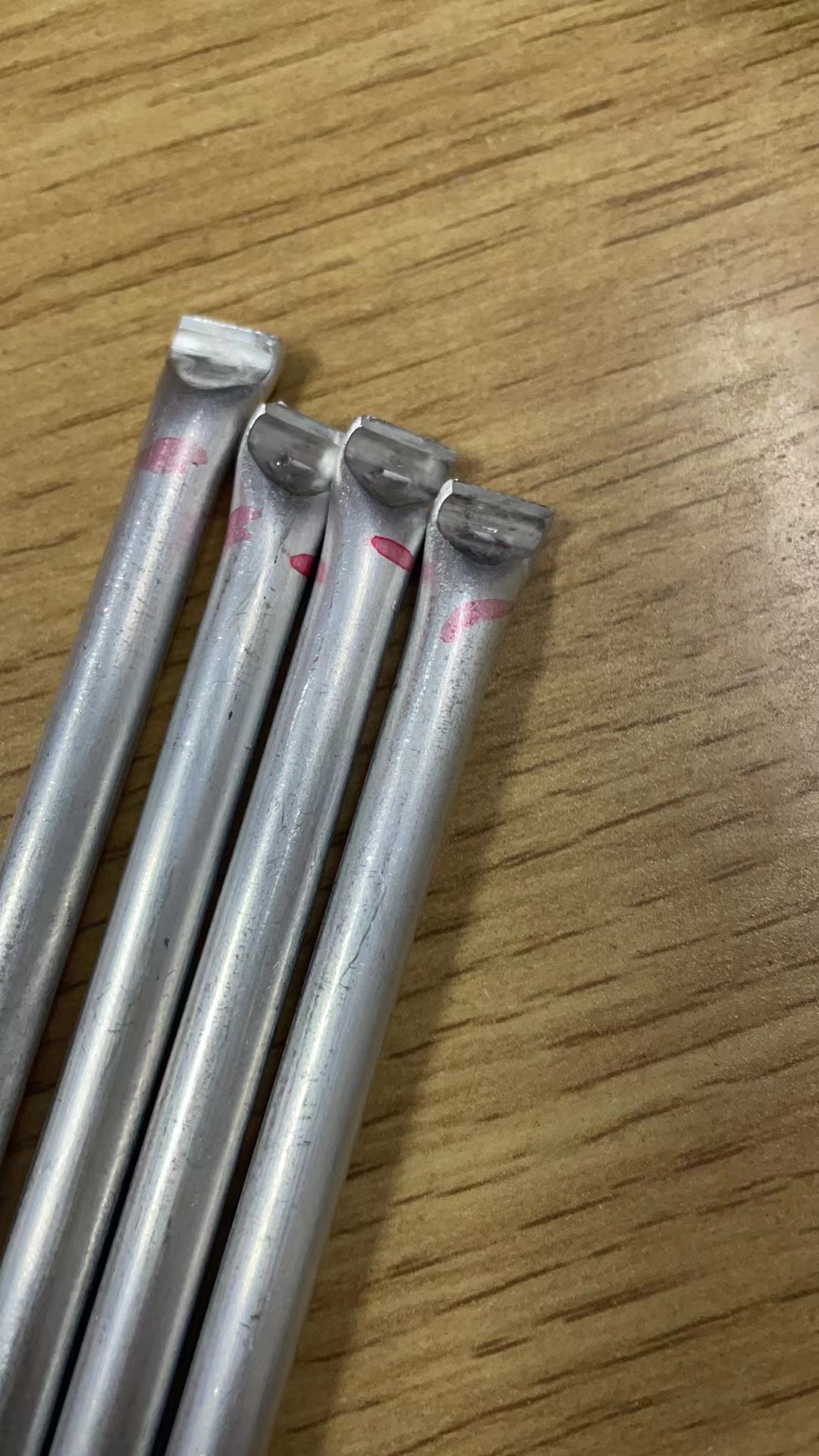

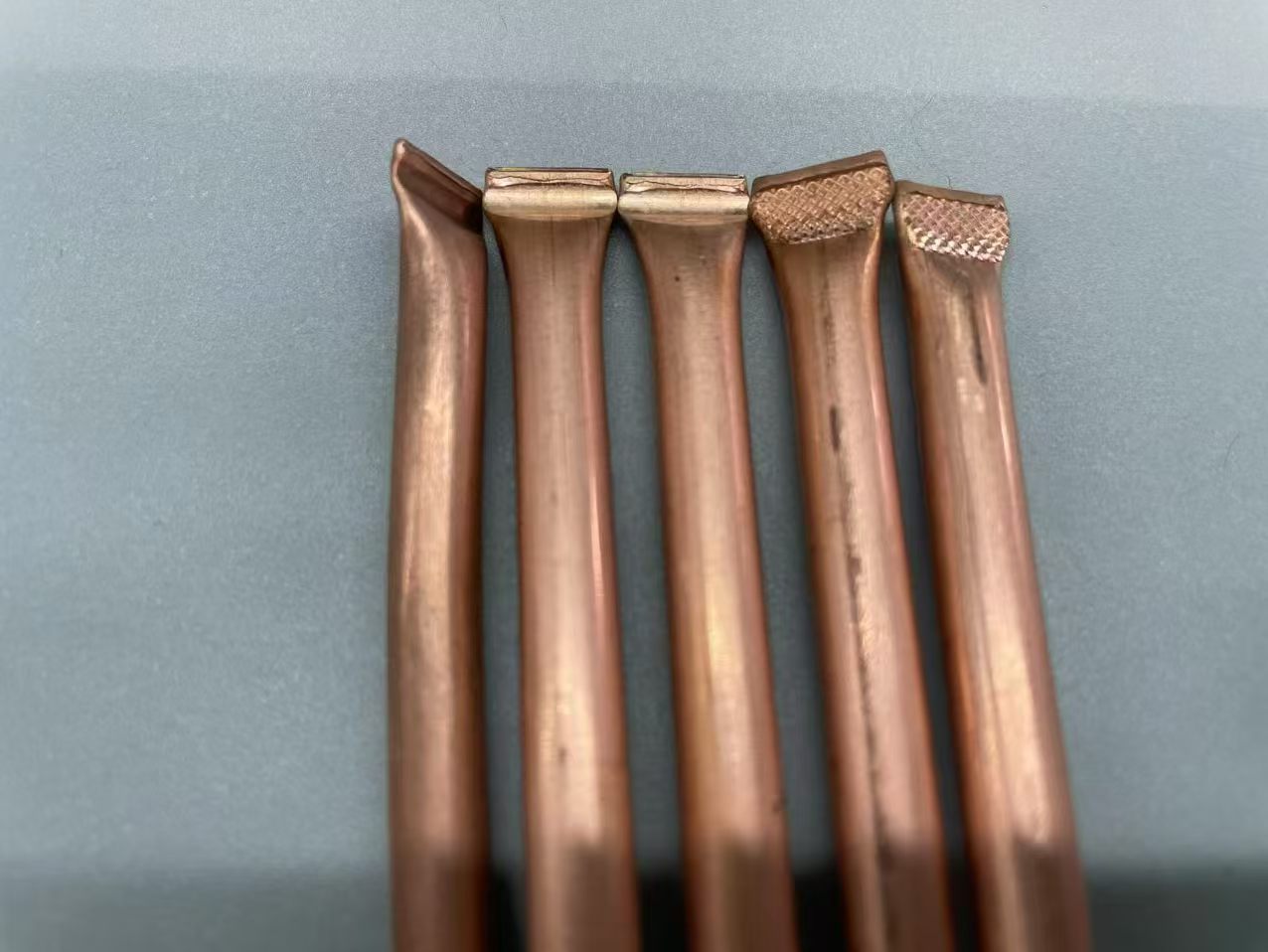

Portable ultrasonic sealing and cutting for copper and aluminum refrigerant tubes, without an open-flame joining process.
- Frequency
- 20 kHz
- Rated power
- 3000 W
- Tube diameter
- 2–10 mm (copper / aluminum)
Designed for your process.
Portable ultrasonic sealing and cutting for copper and aluminum refrigerant tubes, without an open-flame joining process.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Copper conductors & metal components
Material-focused concept imagery, not a photograph of tested welds.
⊕Automotive manufacturing
Illustrative automotive production context for assembly and integration discussions.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Frequency | 20 kHz |
|---|---|
| Rated power | 3000 W |
| Tube diameter | 2–10 mm (copper / aluminum) |
| Working voltage | 220 V |
| Air pressure | 0.1–0.6 MPa |
| Head weight | 12 kg |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
Useful answers.
What is the MC-F30Z used for?+
Portable ultrasonic sealing and cutting for copper and aluminum refrigerant tubes, without an open-flame joining process.
What should I provide for model selection?+
Share your material, part drawing, joint or cutting geometry, target output and installation constraints. For replacement components, include the existing generator, frequency and connection dimensions.
Can I confirm a configuration before ordering?+
Yes. Use the inquiry form to describe your application and the required model. Final tooling, electrical supply, interfaces and performance targets should be agreed for your project.
