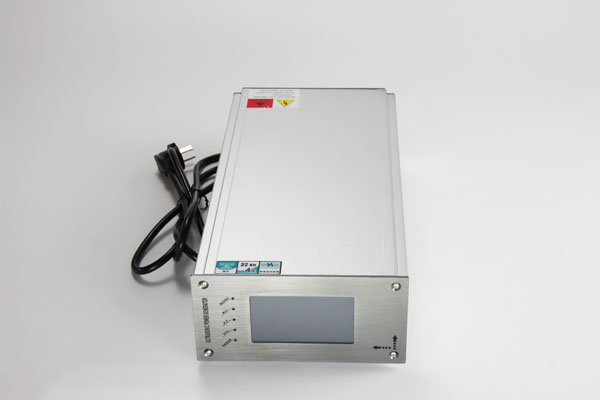

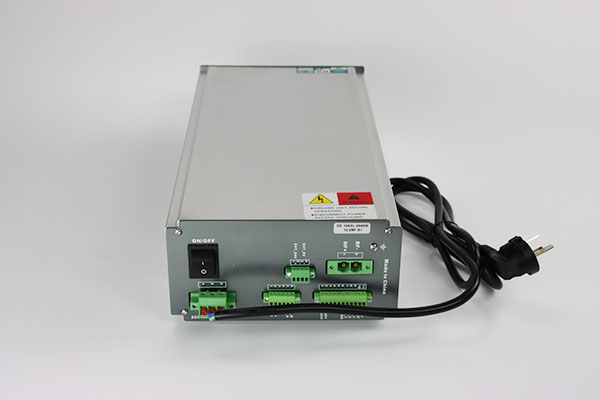

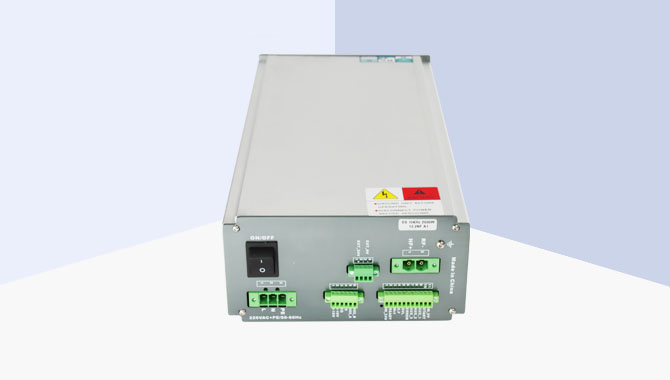

Key-press Digital Ultrasonic Generator
Model · MC-QD-GS
A key-operated digital generator with automatic frequency tracking, adjustable amplitude and RS485 communication.
- Working frequencies
- 15 / 20 / 30 / 35 / 40 kHz
- Output power options
- 4000 / 3000 / 2000 / 1500 / 1000 / 750 W
- Amplitude
- 10–100%; 1% adjustment accuracy
Designed for your process.
A key-operated digital generator with automatic frequency tracking, adjustable amplitude and RS485 communication.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Plastic enclosures & electronics
Conceptual polymer parts and fixtures for joint-design discussions.
⊕Automotive manufacturing
Illustrative automotive production context for assembly and integration discussions.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Working frequencies | 15 / 20 / 30 / 35 / 40 kHz |
|---|---|
| Output power options | 4000 / 3000 / 2000 / 1500 / 1000 / 750 W |
| Amplitude | 10–100%; 1% adjustment accuracy |
| Supply | 220 V ±10%, 50–60 Hz |
| Communication | RS485 |

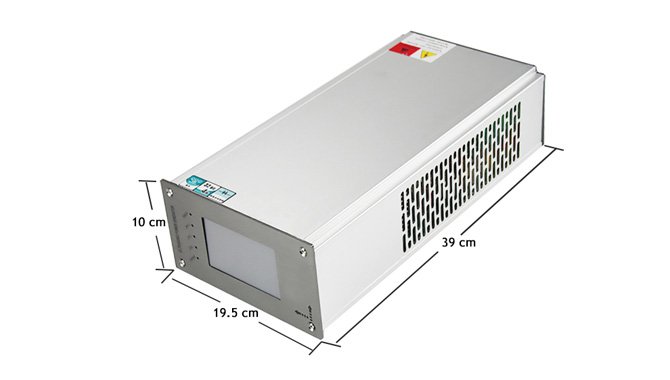

| Dimensions | 390 × 195 × 100 mm |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
Useful answers.
What is the MC-QD-GS used for?+
A key-operated digital generator with automatic frequency tracking, adjustable amplitude and RS485 communication.
What should I provide for model selection?+
Share your material, part drawing, joint or cutting geometry, target output and installation constraints. For replacement components, include the existing generator, frequency and connection dimensions.
Can I confirm a configuration before ordering?+
Yes. Use the inquiry form to describe your application and the required model. Final tooling, electrical supply, interfaces and performance targets should be agreed for your project.
Related equipment.
Explore this family →

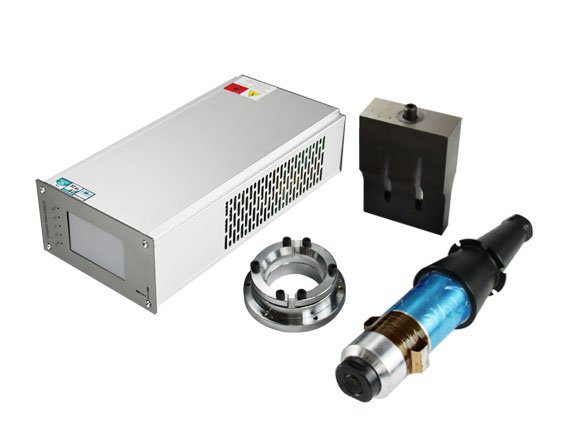

↗High Frequency Ultrasonic Welding Components 15kHz
A matched 15 kHz welding assembly combining a PLC-controlled digital generator, transducer and sonotrode.

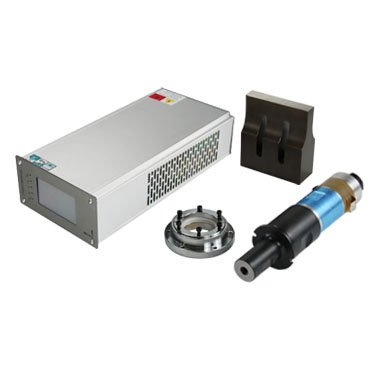

↗High Frequency Ultrasonic Welding Parts 20kHz
A 20 kHz ultrasonic welding assembly with a PLC-controlled generator, transducer and application-matched sonotrode.

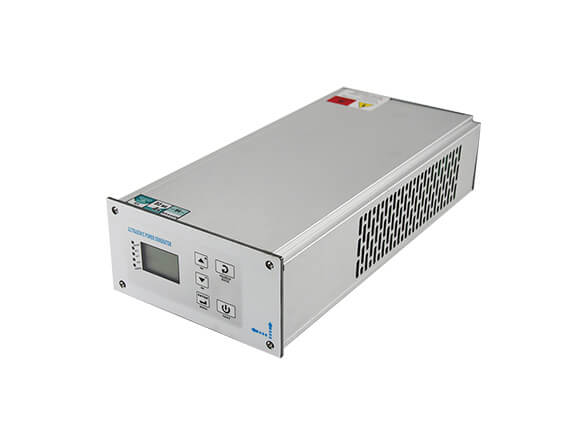

↗Ultrasonic Actuator For Automation Line
